Overview of rugged power components
Industrial electrical systems demand components that can endure high current surges, thermal cycling, and continuous duty. High Power Punched Grid Resistors offer a compact, reliable solution for braking, load testing, and dynamic absorption. These devices leverage a grid-like resistive element to spread heat and manage power dissipation efficiently. Manufacturers optimize contact interfaces and High Power Punched Grid Resistors enclosure designs to reduce inductance and improve thermal stability, ensuring predictable performance across a range of ambient temperatures and duty cycles. When selecting resistors for industrial drives, electricians evaluate resistance value, power rating, and mounting compatibility to meet specific braking or energy dissipation needs.
Design approaches for braking and energy absorption
In braking applications, the resistance element must convert kinetic energy into heat with minimal voltage sag and rapid thermal response. High Power Punched Grid Resistors are engineered with robust cooling paths and modular construction to facilitate maintenance and replacement. The grid pattern provides uniform Aluminium Housed Metal Clad Braking Resistors current distribution, while protective enclosures limit dust ingress and reduce vibration impact. Engineers consider mounting orientation and air convection in control cabinets or on machine frames to maximize heat transfer, extending service life under demanding operating conditions.
Material and enclosure options for rugged operation

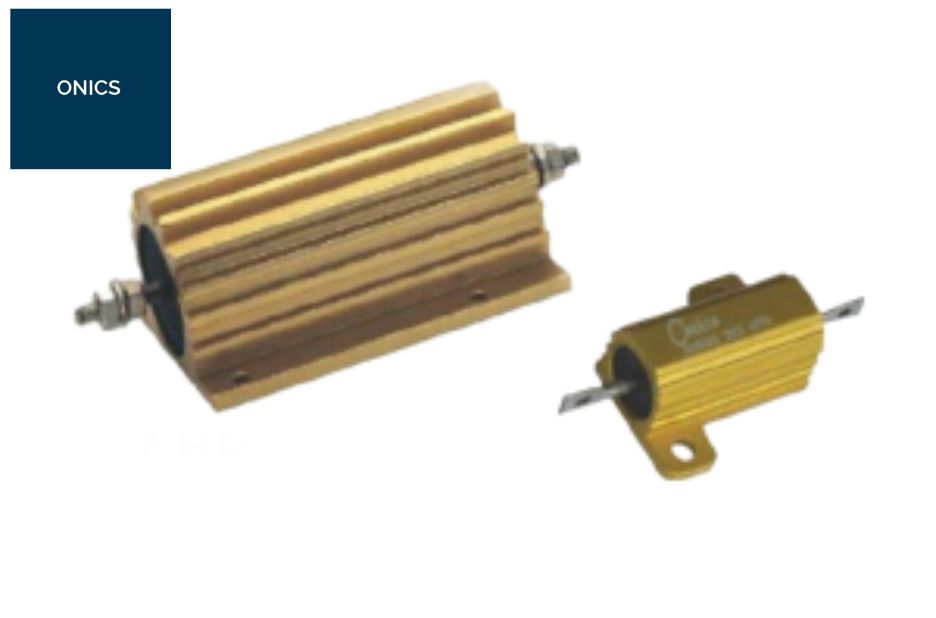

Aluminium Housed Metal Clad Braking Resistors stand out for their lightweight yet stiff frames and highly conductive housings. The metal clad surface improves heat spreading and enables efficient thermal management in compact footprints. Aluminium housings offer corrosion resistance and ease of fabrication, while the metal cladding provides additional protection against mechanical wear and environmental exposure. For users, this translates to dependable performance in aerospace, rail, or heavy machinery where space and reliability are critical considerations.
Standards, safety, and installation guidance
Proper selection and installation reduce electrical noise, thermal hotspots, and EMI concerns. Industry standards guide voltage ratings, insulation levels, and creepage distances to ensure personnel safety and equipment protection. Practitioners assess derating curves for temperature, altitude, and ambient conditions to avoid overloading. Cable entries, mounting hardware, and fan or heat sink compatibility are also evaluated to achieve stable operation during transient events and peak loads.
Performance validation and lifecycle considerations
Before deployment, performance validation includes resistance accuracy checks, thermal profiling, and endurance testing to verify waveform response and recovery characteristics. Lifecycle planning addresses wear mechanisms, such as contact erosion, enclosure seals, and thermal fatigue. Regular inspections, predictive maintenance schedules, and spare-part availability help minimize downtime and extend the useful life of the braking solution in challenging industrial environments. Operators benefit from documented test data that supports warranty coverage and safety compliance.
Conclusion
Choosing the right energy-dissipation resistor requires balancing electrical, thermal, and mechanical demands. High Power Punched Grid Resistors provide a versatile option for high-load braking and power dumping, while Aluminium Housed Metal Clad Braking Resistors offer an attractive mix of heat management and rugged construction. In practice, engineers corroborate performance through load tests and thermal mapping to ensure reliability on critical systems. Onics power resistor
